High level overview on how to run Device42 on your local machine using VirtualBox
Download VirtualBox
https://www.virtualbox.org/wiki/Downloads

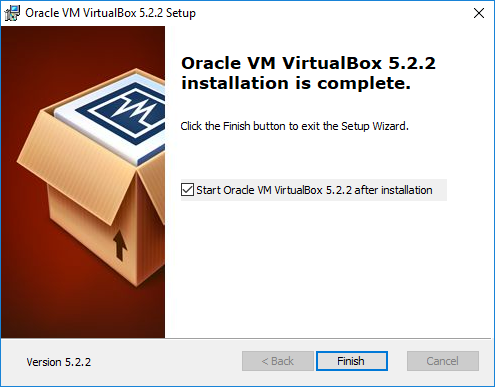

Install VirtualBox
Go through all the appropriate next steps to install on your local Windows environment
Request Device42 Trial Download
Http://www.device42.com

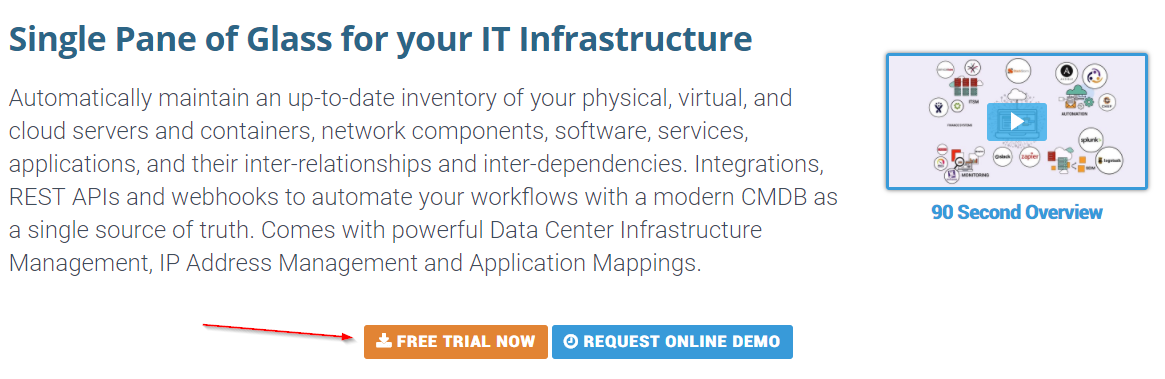

Click on "Free Trial Now"

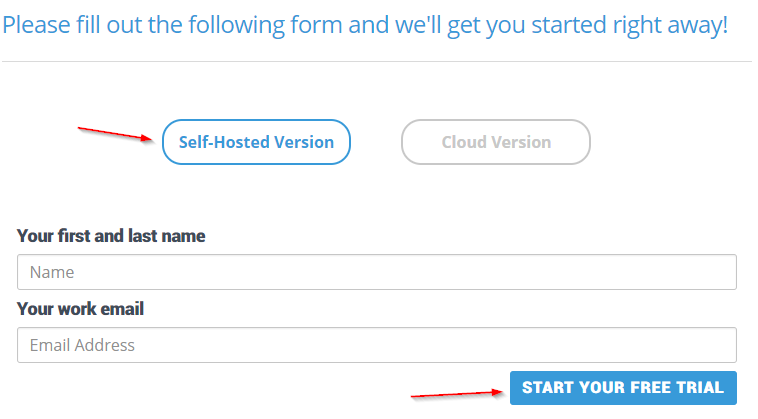

Fill out form
Fill out your name and your email then click on "Start Your Free Trial"
Go to your email
Click on "here" in your email to download the device42 virtual appliance

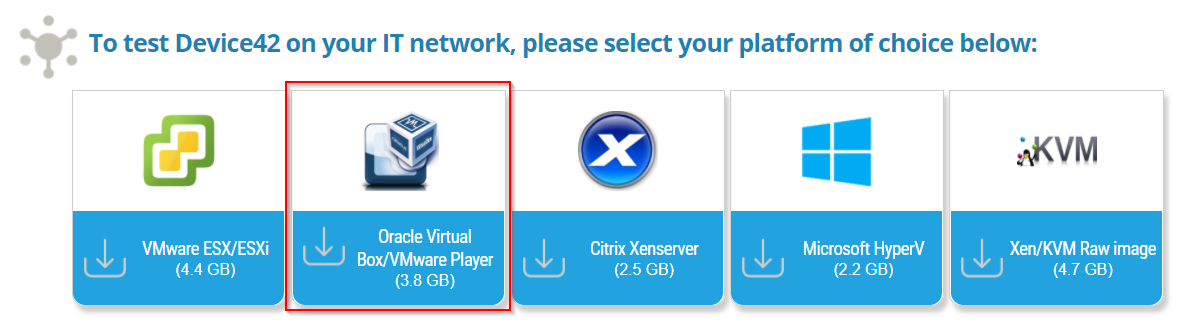

Select your virtual environment
Oracle Virtual Box/VMware Player

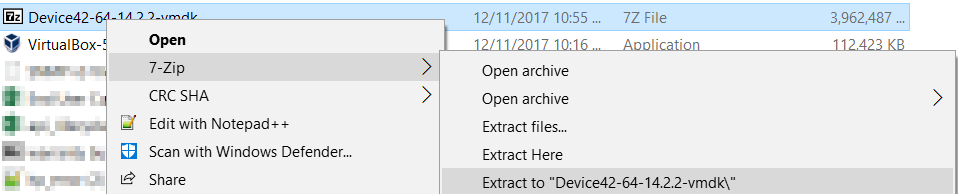

Use 7zip File Manager
Extract the file with 7zip file manager. The 7zip extraction will extract a ".vmdk" file
http://www.7-zip.org/
Importing into VirtualBox as New VM
1 Choose any name you want to give this appliance.
2. Choose Linux as OS.
3. Choose Ubuntu (64-bit) as version.
4. Next
Memory
Give the vm at least 1gb of ram
Choose existing Harddisk and browse to unzipped VMDK
Use existing harddisk and browse to folder where you extracted device42-14.x.x-player.zip. And choose the vmdk file.
Click Create
Finish
Don’t power on after Finish
Enable PAE
Go To setting of the new appliance you just added.
Go to System > Processor
Enable PAE
Click OK
Configure Network Card
Enable Adapter 1.
Choose Bridged Adapter (or NAT if you want) for network access.
Choose the Physical NIC you would be using.
Click OK.
Setup and Go

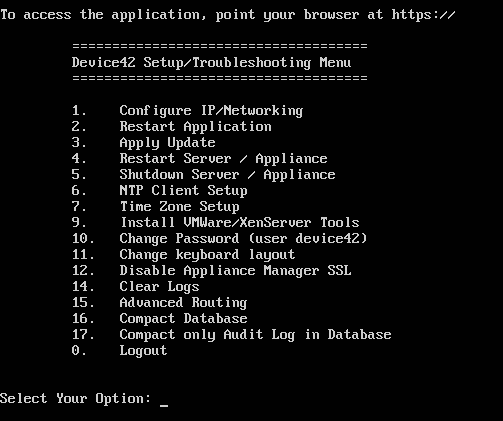

Power on Virtual appliance. (Ignore audio driver warning if you get any)
Login with default username and password : device42/adm!nd42 (Option 10 to change the password)
Network Setup
Option 1 to configure networking. Choose DHCP or give static IP.
Login!
Default credentials:
Username: admin
Password: adm!nd42
Enjoy!
